| Brand Name: | CTWELL |
| Model Number: | Straight-through Current Transformer |
| MOQ: | 500 |
| Price: | USD 0.5-2.8 |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T,D/A,D/P,Western Union |

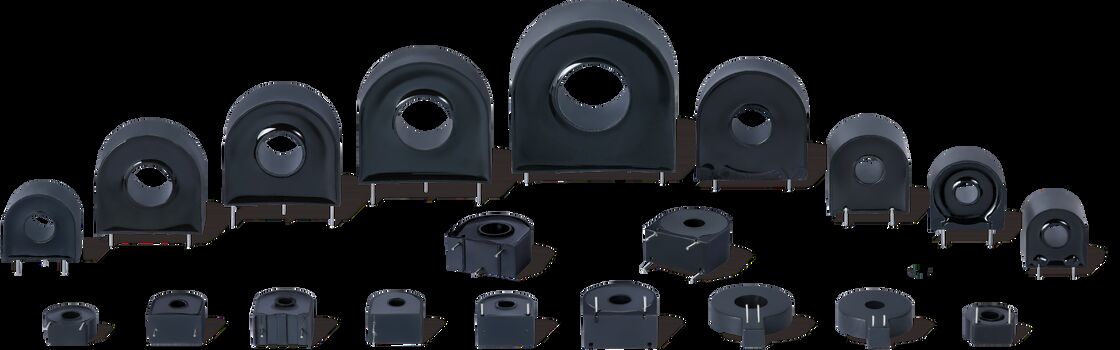

Micro Current Transformer AC1020 Primary Current 20A, PCB Mount Pin Miniature Current Transformer 1000/1 For Metering And Sensing Overload Current
Feature:
1. Primary straight -through, flexible cable selection.
2. PCB mounting for easy installation, saving soldering time
3. Primary rated current:1A-200A Secondary rated current: 1mA-200mA
Application:
Sensing Overload Current
Ground fault detection
Metering
Analog to Digital Circuits
Parameters:
| Electrical Specifications | |
| Primary Current | 20A nom., 60 A max |
| Turns Ratio | 1000:1 nominal |
| Volt per Amp Ratio at 20A for 100 ohm load | 0.100 V/A |
| Volt per Amp Ratio at 2A for 100 ohm load | 0.097 V/A |
| DC Resistance at 20°C | 41.8 ohms |
| Dielectric Withstanding Voltage (Hi-pot) | 4KVrms |
| Mechanical Specifications | |
| Case | Polycarbonate |
| Encapsulant | Epoxy |
| Flammibility | Conforms to UL94-VO |
| Terminals | Pins 0 0.80mm |
| Marking | AC1020, Dot at start pin |
| Approximate Weight | 16.3 grams |
| Tolerance | ±0.2mm |
| Environmental Specifications | |
| Storage Temperature | -55°to +130°C |
| Insulation Resistance | 100 megohms min. |
Outline:
Current Transformer Winding Production Line (Factory)
Miniature current transformer production line and Autpmatic Potting Machine
Attend Exhibition:
Package:
Shipping
FAQ:
Q: Are you trading company or manufacturer ?
A: We are an integrated manutacturer of current transformer, encompassing research and development, production, and sales.We provide customers with one-stop energy-saving, high-efficiency electronic component technology solutions.
Q: Can I get samples?
A: Samples order testing is supported, which help customers understand the performance and quality of products more intuitively.
Q:.How long is the sample lead time?
A: For ready samples, it's about 2-3 days. If you require your own size, it takes about 7 days.
Q: How long is the production lead time?
A: Generally 5-7 days for small order, If the goods are not in stock, depending on order quantty and production schedule.
Q: Which kinds of certificate would you have?
A: ISO9001, ISO14001, ROHS, REACH, MSDS.
Q: What is your terms of payment ?
A: 100% payment in advance.
Total amount > USD5000, 30% T/T in advance ,balance pay off before shipment.
