| Brand Name: | CTWELL |
| Model Number: | HCT-300A |
| MOQ: | 500 |
| Price: | USD 50-100 |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T,D/A,D/P,Western Union |
Hall Effect Sensor Measures DC Current Hall Effect Sensor For Cable Round Window For Cable DC Current Up To 200A With 21mm Diameter Window and 1000A With 40mm Diameter Window.
Products Features

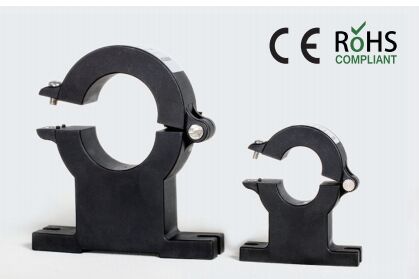

Split-core current hall effect sensor measures DC current up to 200A with 21mm diameter window and 1000A with 40mm diameter window.The output signal is optional at either 4-20 mA or 0-5V.The split-core sensors are ideal for retro-fit installation on existing electrical wiring without any disconnection.
Specifications:
| SPECIFICATIONS | |
| Rated input | 50A,100A,200A,400A,600A,1000A |
| Rated Output | 4-20mA or 0-5V |
| Accuracy | 0.50% |
| Bidirectional current input is optional | |
| Power Supply +/-15V(AcuDC 240 series multifunction | |
| DC Meter provides power supply from | |
| module directly without separate | |
| sourcing of power) | |
| Two Opening Size 21mm and 40mm | |
Demension:
| P/N | Dimensions (inch/mm) | ||||||||
| A | B | C | D | E | F | G | Ø1 | Ø2 | |
| HAK21 | 2.36/60 | 2.40/61 | 0.63/16 | 1.57/40 | 1.18/30 | 0.30/7.5 | 0.20/5 | 0.83/21 | 1.65/42 |
| HAK40 | 3.94/100 | 3.94/100 | 0.94/24 | 2.56/6 | 5 1.93/4 | 9 0.39/1 | 0 0.24/ | 6 1.57/4 | 0 2.80/71 |
FAQ:
Q: Are you trading company or manufacturer ?
A: We are an integrated manutacturer of current transformer, encompassing research and development, production, and sales.We provide customers with one-stop energy-saving, high-efficiency electronic component technology solutions.
Q: Can I get samples?
A: Samples order testing is supported, which help customers understand the performance and quality of products more intuitively.
Q:.How long is the sample lead time?
A: For ready samples, it's about 2-3 days. If you require your own size, it takes about 7 days.
Q: How long is the production lead time?
A: Generally 5-7 days for small order, If the goods are not in stock, depending on order quantty and production schedule.
Q: Which kinds of certificate would you have?
A: ISO9001, ISO14001, ROHS, REACH, MSDS.
Q: What is your terms of payment ?
A: 100% payment in advance.
Total amount > USD5000, 30% T/T in advance ,balance pay off before shipment.
